Standard Specifications
| Model |

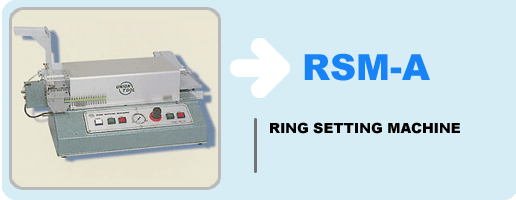

RSM-A |
| Setting Accuracy |
R=0.06
mm (R=Max.-Min.) |
| Ability |
1pc/8
Sec |
| Drill Diameter |
Ø0.3
~ 2.8 mm |
| Shank Diameter |
Ø3.175mm |
| Over all Length |
37.0
~ 38.2 mm |
| Ring Size |
Ø7.5
mm x 4.6 t |
| Power |
AC
100V to ±10% --50/60㎐ |
| Consumption Power |
200W |
| Air Pressure |
6~7㎏f/㎠(12ℓ-min) |
| Machine Dimensions |
585W
x 400D x 365H mm |
| Weight |
20㎏s |
| Ring Depth |
20.0 ~ 24.0 mm |
| Ring Removing |
O |
|
|
| |
|
|
| |
|
|
|
