| Model |

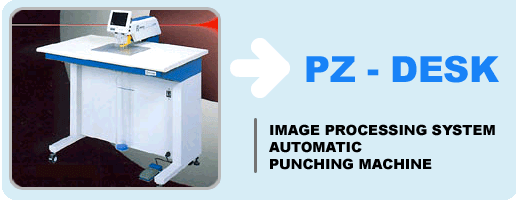

PZ-DESK |
PZ-DESKㆍBIG |
| Main Use |
Punching
registration holes in flexible substrates |
| Punching Speed |
0.8sec/hole |
1.0sec/hole |
| Punching Accuracy |
±15㎛ |
| Center Searching Mechanism |
Complex Image
Processing Mechanism |
| Target Mark Size |
Ø0.6~Ø3.0mm |
Range
of View |
Standard
View : 5.0 x 4.0mm
Digitized View : 4.5 x 3.5mm |
| Centering Range |
±1.5mm |
| Display |
5.5 inch
TFT LCD |
| ILLUMINATION |
LED lamp
from upper side (3 color)
LED lamp from underneath |
| Threshold Level |
256 levels
|
| Punch Size |
Ø0.6~Ø3.0mm
(Ø3.9mm - Optional) |
Ø0.6~Ø6.0mm
(Ø6.49mm - Optional) |
Press
Power |
80kg |
110kg |
| Dimension |
W900 x D735
x H1000mm |
| Weight |
90kgs |
| Power supply |
AC 100V~240V
500VA |
| Air Supply |
Over 0.5Mpa |
